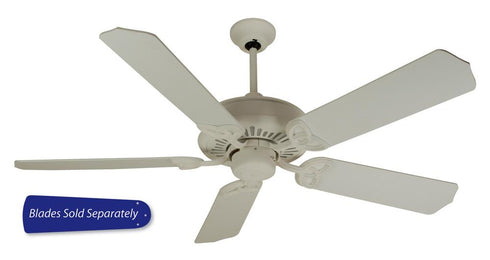

Craftmade American Tradition 52 Inch Ceiling Fan Blade Options Model: AT52W

• Model Number: AT52W
• Height: 15.5''
• Max Height: 15.38''
• Finishes Available: Brushed Satin Nickel, Oiled Bronze, Aged Bronze Textured, White
• Style: Traditional
• Light Kit Included: Yes
• Down Rod Included: 6''
• Blades Included: Sold Separately
• Blade Pitch: 16°
• Motor Fan Speed: 3
• Motor RPM: 174
• Motor Size: 188x20
• Motor Type: Ac
• Electricity User: 84
• AMPS: 0.67
• Voltage: 12060V
• Air Flow CFM: 6290.61
• Air Flow Efficiency: 79.03
• Material: Steel Silicon Steel
• Canopy: Depth 5.13 Width 5.13 Height 2.09
• Wire Included: 80''
• Blade Type: Type1, Type 2
• AirflowEfficiency High: 75.05
• AMPS High Max: 0.69
• Blade Count: 5
• Blade Features: Blades Sold Separately
• Blade To Ceiling Height: 13.5''
• CFM High: 6238.02
• CFM High Max: 6195.62
• CFM Low Max: 2111.21
• Control Types Included: Pull Chain
• Downrod Quantity: 1
• ElectricityUsed High: 82.64
• ElectricityUsed Low: 12.55
• Energy Guide CFM: 4260
• Energy Guide CFM Watts: 88
• Energy Guide Est Yearly Energy: 14
• Energy Guide Watts: 50
• Finish Group: White
• Leadwire Length: 80.000''
• Light Kit Features: Light Kit Adaptable (sold Separately)
• Motor Diameter: 188
• Motor Height: 20''
• Motor Material: Silicon Steel
• MotorRPM 1: 189
• MotorRPM 2: 129
• MotorRPM 3: 69
• MotorRPM Low: 61
• Number Of Downrods: 2
• Reverse Location: Switch Housing
• Reverse Method: Slide Switch
• Secondary Downrod Quantity: 1
• Slope Mount: Yes
• Watts: 79.6

Click here to view Installation Guide for AT52W
